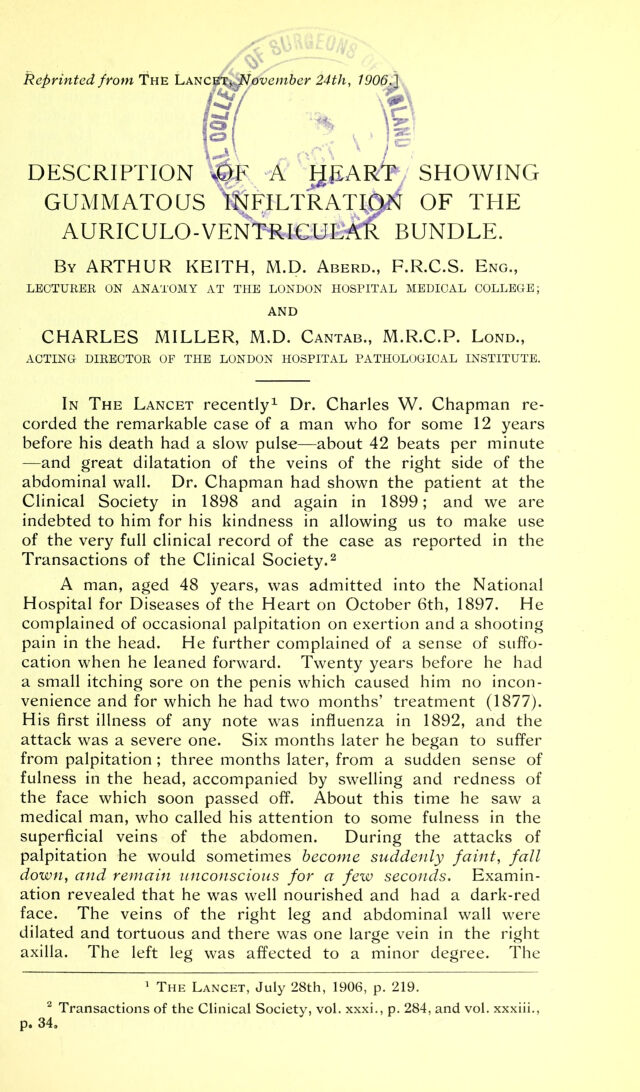

Description of a heart showing gummatous infiltration of the auriculo-ventricular bundle / by Arthur Keith and Charles Miller.

  • Arthur Keith
Date:
[1906]
Catalogue details

Licence: In copyright

Credit: Description of a heart showing gummatous infiltration of the auriculo-ventricular bundle / by Arthur Keith and Charles Miller. Source: Wellcome Collection.

Provider: This material has been provided by The Royal College of Surgeons of England. The original may be consulted at The Royal College of Surgeons of England.

    5/10 page 3
    have commenced at the coronary sinus in this case. The orifice of the coronary sinus was contracted; it measured 6 by 5 millimetres. It is probable, but the statement lacks experimental proof, that the contraction of the left auricle may commence in the musculature surrounding the terminations of the pulmonary veins. In this heart that musculature was but slightly involved in the gummatous infiltration. The musculature of the vesti- bule4 of the left auricle was only slightly damaged, but all the Fig. 1. Two-thirds natural size. Heart, showing the septal wall of right auricle and ventricle. a, Remnant of superior vena cava, b, Position of orifice of superior vena cava, quite closed, c, Greatly dilated inferior vena cava, d, Fossa ovalis. e, Cicatricial tissue of interauricular septum (stippled). /, Pars membranacea septi and extension of cicatricial tissue into interventricular septum, in which the auriculo-ventricular bundle is involved-. Between d and e is the opening of the coronary sinus, e, i, The block cut out for examination, g, Base of right ventricle, h, Body of right ventricle. I, Infundibulum, m, Moderator band with plane of section indicated, n, Pulmonary artery, o, Aorta. See Evolution of the Muscular Structures of the Heart, by A. Keith, The Lancet, March 12th, 1904, p. 704.
